Product Description
Description

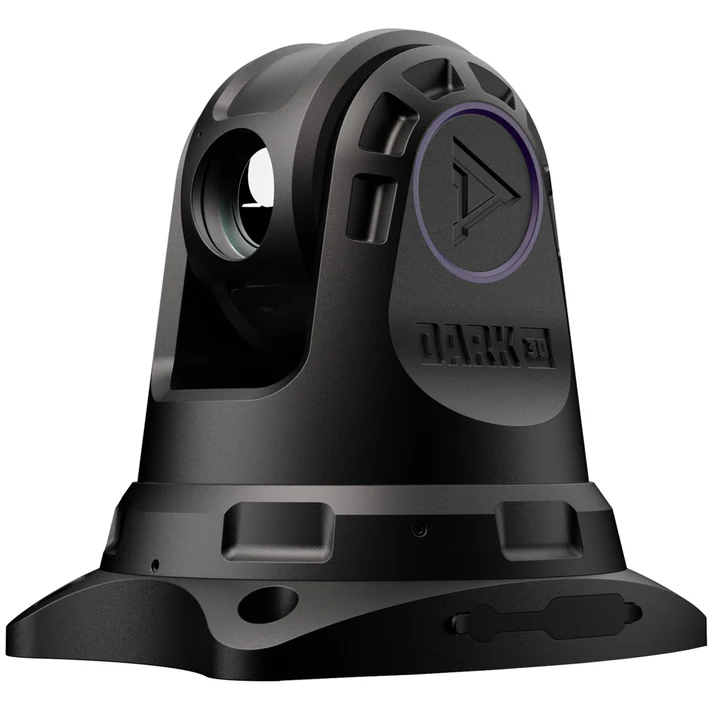

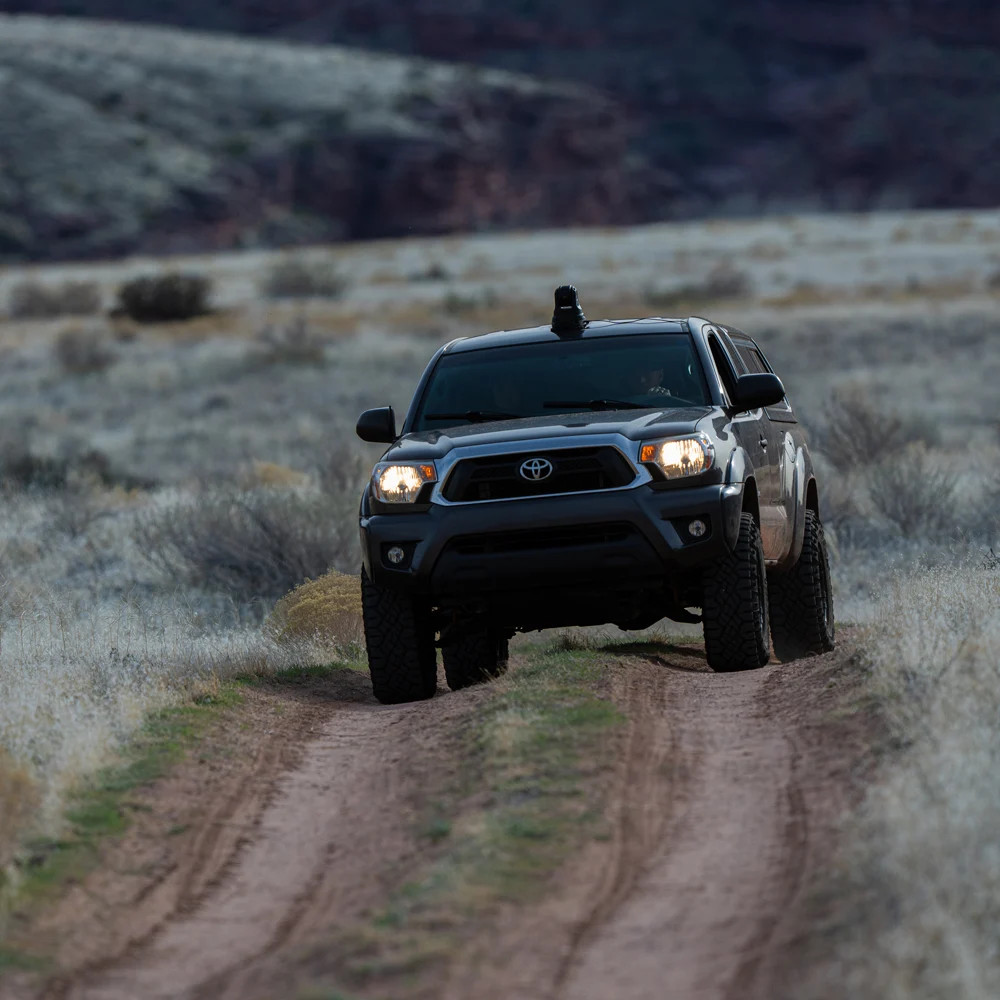

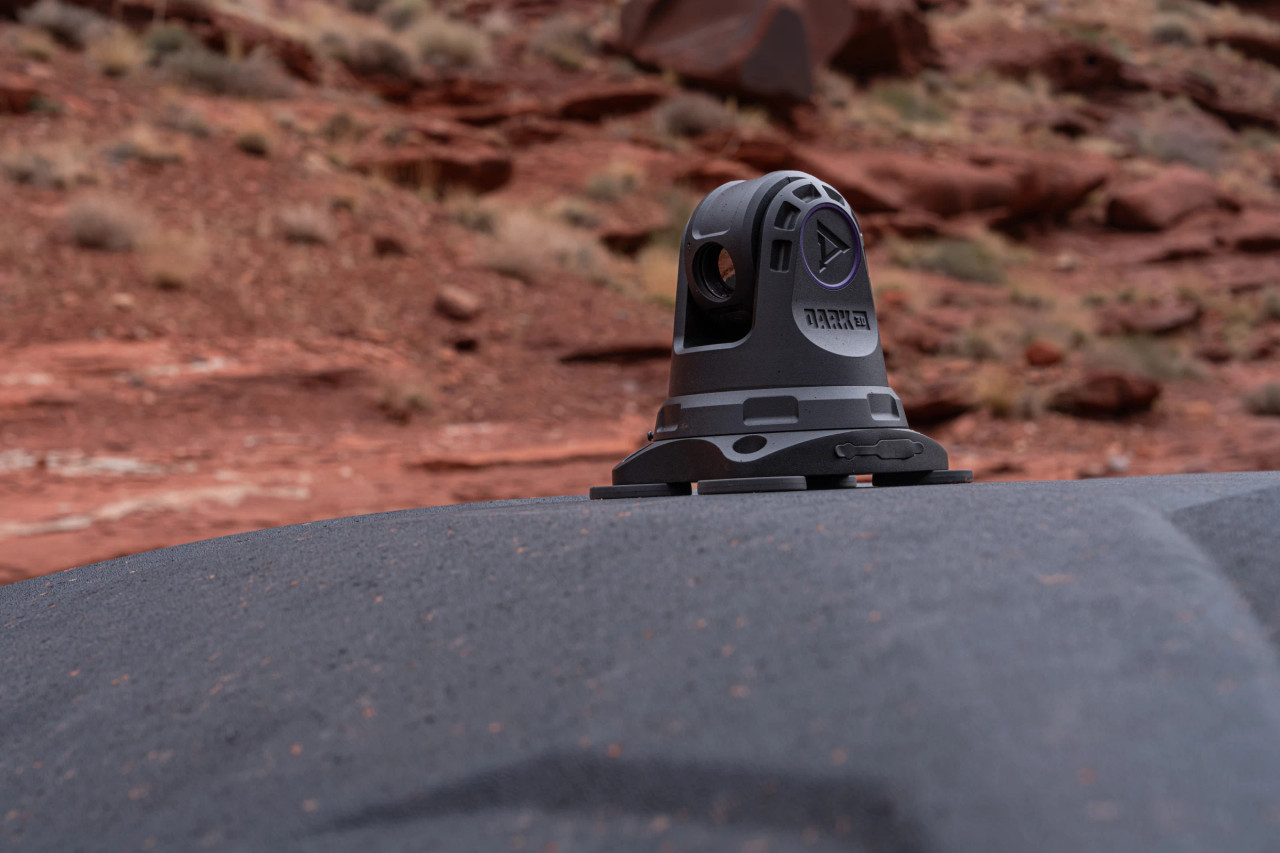

The Dark 30 Defiance is an innovative PTZ vehicle-mounted thermal camera for mobile scouting. Eliminate the need for handheld observation and overcome the limitations of thermal-blocking windshield and window glass with this roof-mounted camera, providing a full 360° scan from an elevated vantage point. Mounted atop your vehicle, the Defiance offers a broader, clearer view compared to handheld or gun-mounted scanning. Its versatile mounting options—magnets, suction cups, or direct screws—ensure compatibility with any vehicle, with all hardware included. The 360-degree rotation and integrated directional indicator make it effortless to track and pinpoint targets.
Key Features
- Sensitive Remote-Controlled Adjustments
- Intelligent Sleep Mode
- Instant Orientation
- High Resolution 384×288 thermal imaging
- Infinite 360° Panning
- Low Latency HDMI compatible Wired Screen
- App Control on the Dark 30 App
- Versatile Mounting Options: (Permanent bolts, suction cups, or 100lb pull magnets)
- Water Resistant
- 5 Year Warranty
**Takes approx. 1-2 weeks to ship**
Specifications
| Dark30 Defiance LS 384PTZ | |
| Sensor Type | 384×288 pix 17µm |
| Spectral range | 8 – 14 μm |
| Frame Rate | 60 fps |
| NETD | <40 mK |
| Digital Zoom | 1 – 8x |
| Lens Diameter | 30mm |
| Field of View (H x V x D) | 20° x 15° x 25° |
| Detection Range | 1150 m |
| Display | 1920×1200 LCD |
| Ports | 1 TF card slot, 2 HDMI ports, 2 DC ports |
| Power Supply | 12v DC |
| External power supply | Car cigarette power, 12VDC |
| Battery Type | N/A for unit, 2x AAA for Remote |
| Pan Angle | Continuous 360° |
| Tilt Angle | Straight downward to 45 degrees above horizontal |
| Environmental Rating | P66 |
| Operating Temperature | 20°C to +40°C |
| Dimensions (W x D x H), mm | 169 x 195 x 198 |
| Weight, kg | 3.15 |

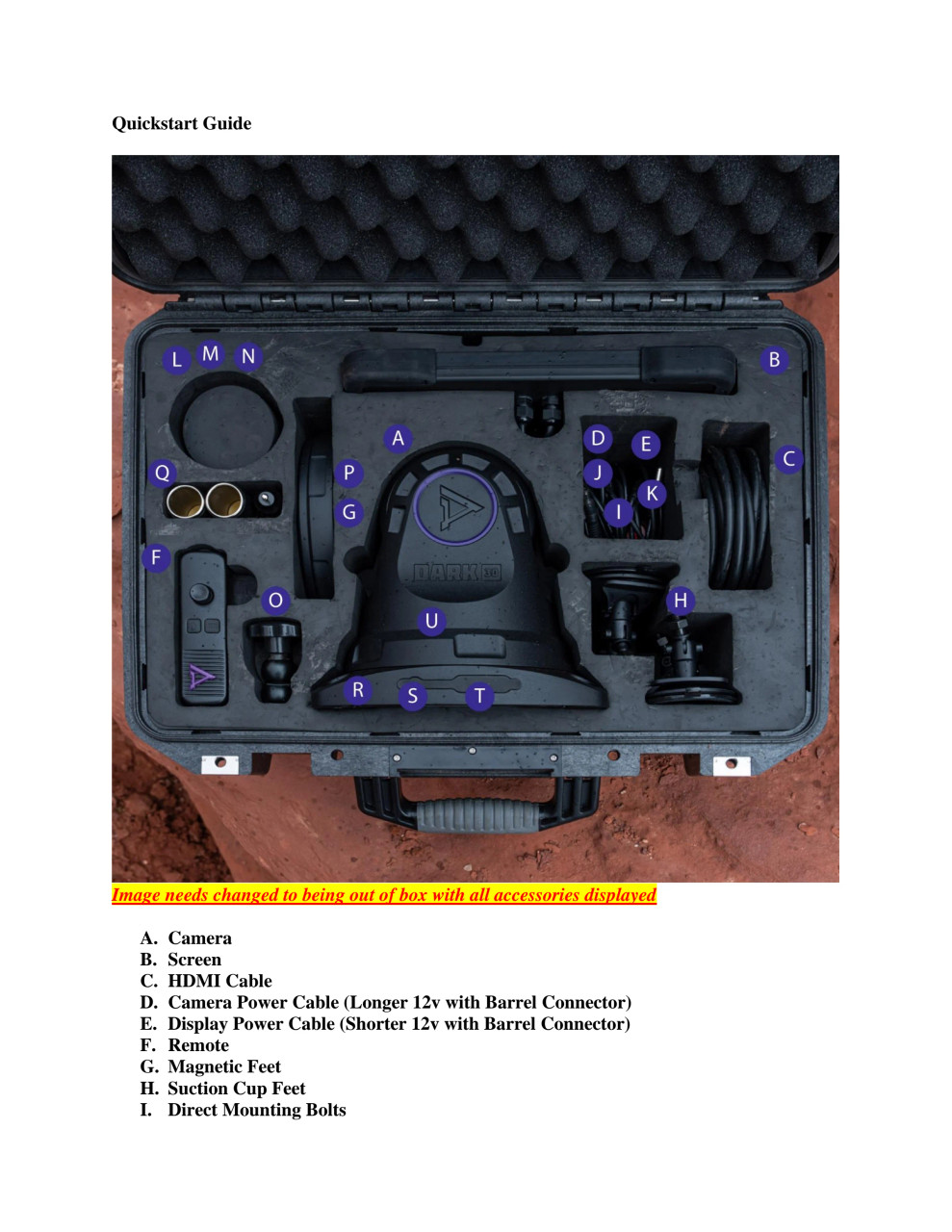

You get:
- 1 × DARK30 Defiance PTZ Vehicle-Mounted Thermal Camera
Compatible with:
- Vehicles with 12V/24V power systems (trucks, SUVs, off-road vehicles)
- External displays or control systems (depending on output configuration)
- Vehicle mounting platforms such as roof racks or dedicated mounts
Installation Difficulty:
Advanced
Tools required:
- Basic hand tools (wrenches, sockets, screwdrivers)
- Drill (for custom mounting, if required)
- Wiring tools (crimpers, connectors, electrical tape)
Installation notes:
- Must be securely mounted to a stable platform to ensure smooth PTZ operation
- Ensure proper voltage compatibility when wiring into the vehicle
- Route and secure wiring to avoid exposure to heat, moisture, or moving parts
- Test pan, tilt, and zoom functionality after installation
- Professional installation is recommended for best results
