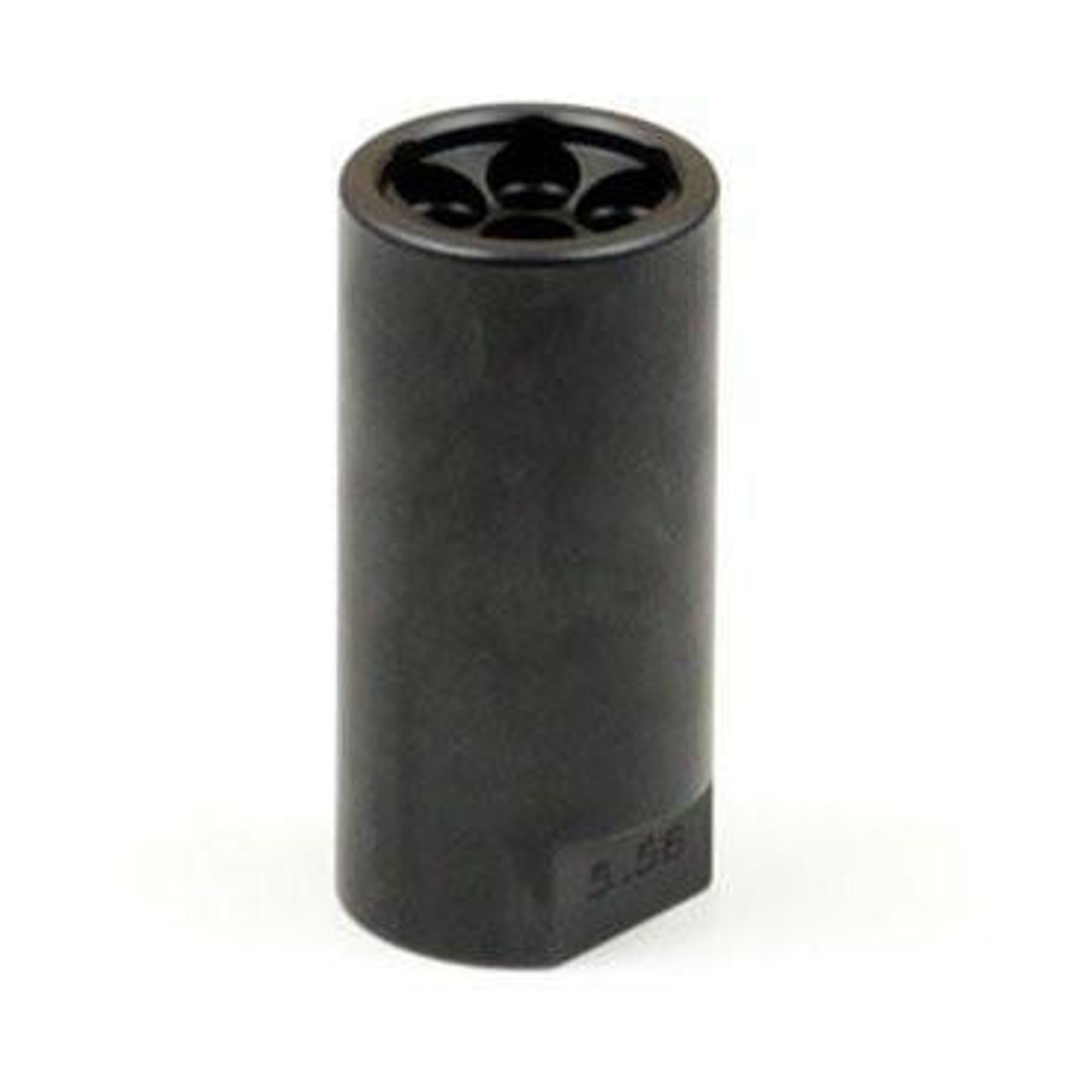

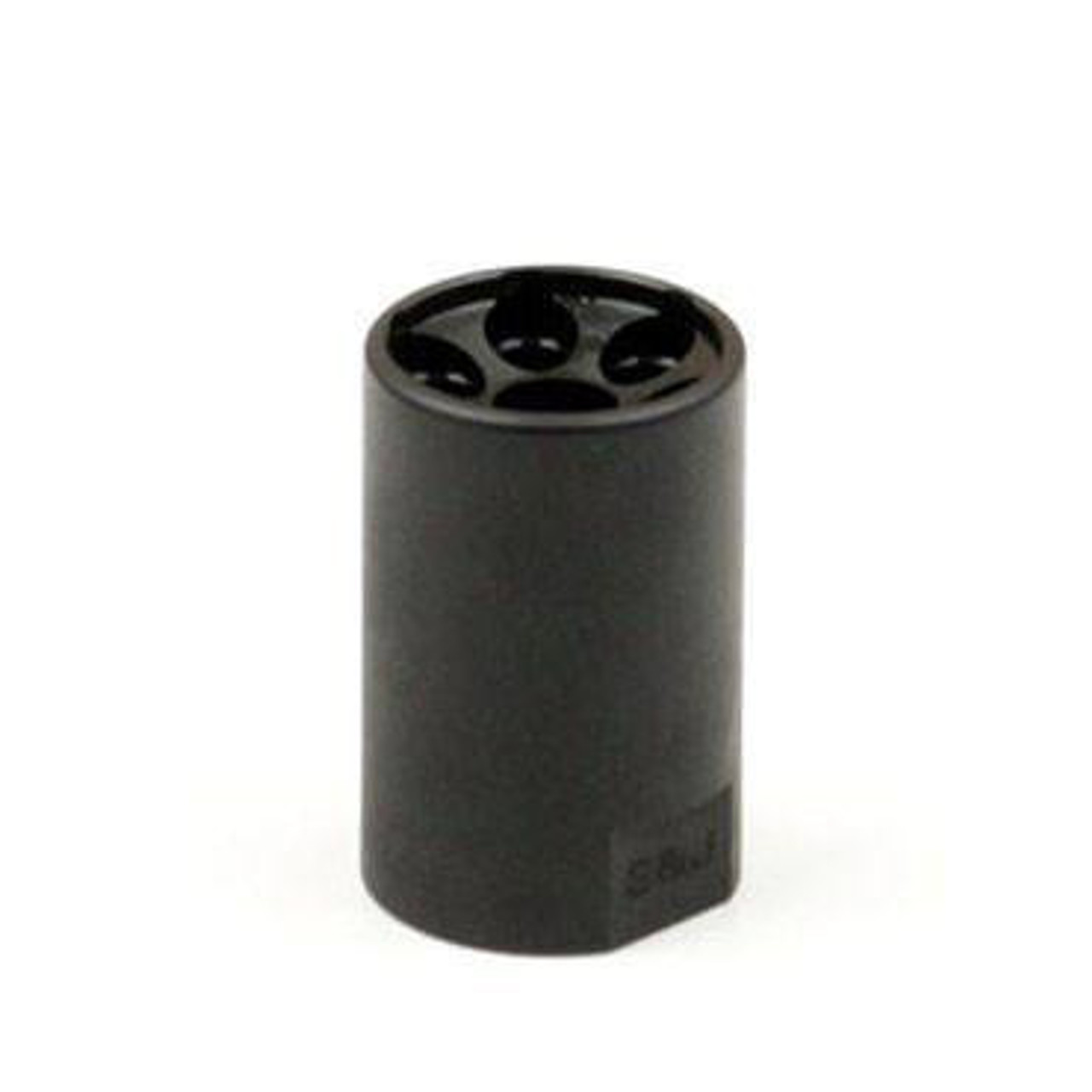

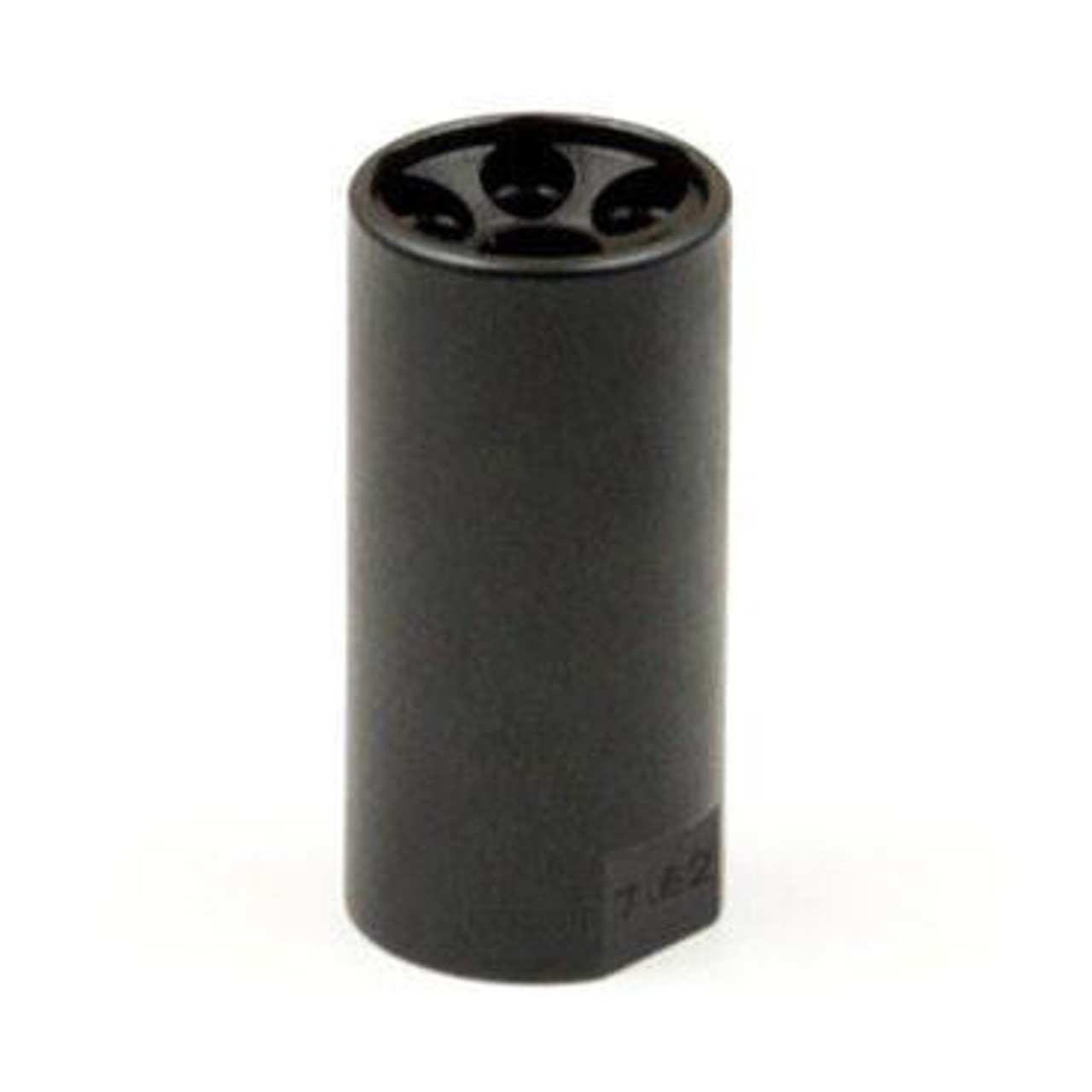

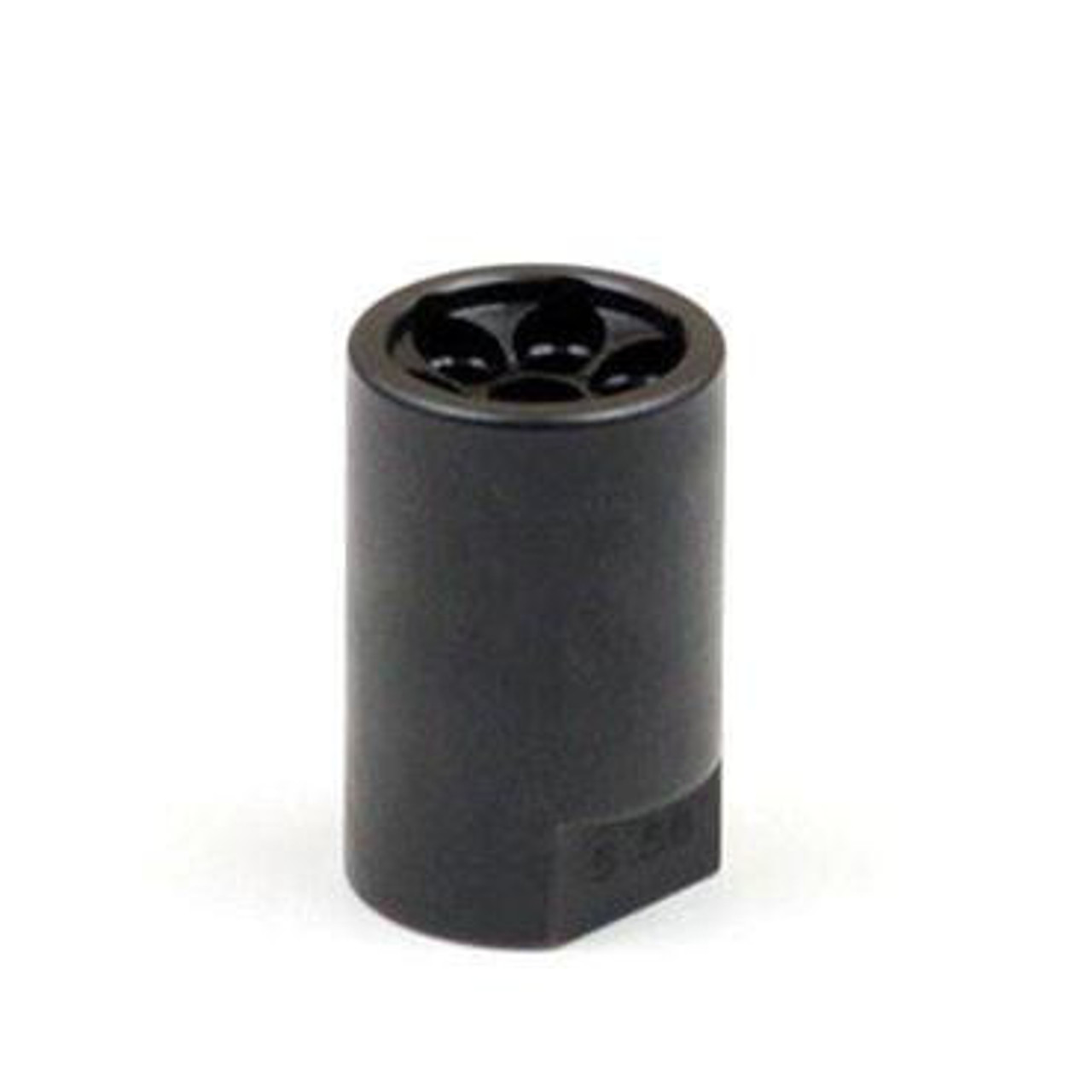

S&J Hardware Linear Compensator, .223, 9mm and 7.62

Product Description

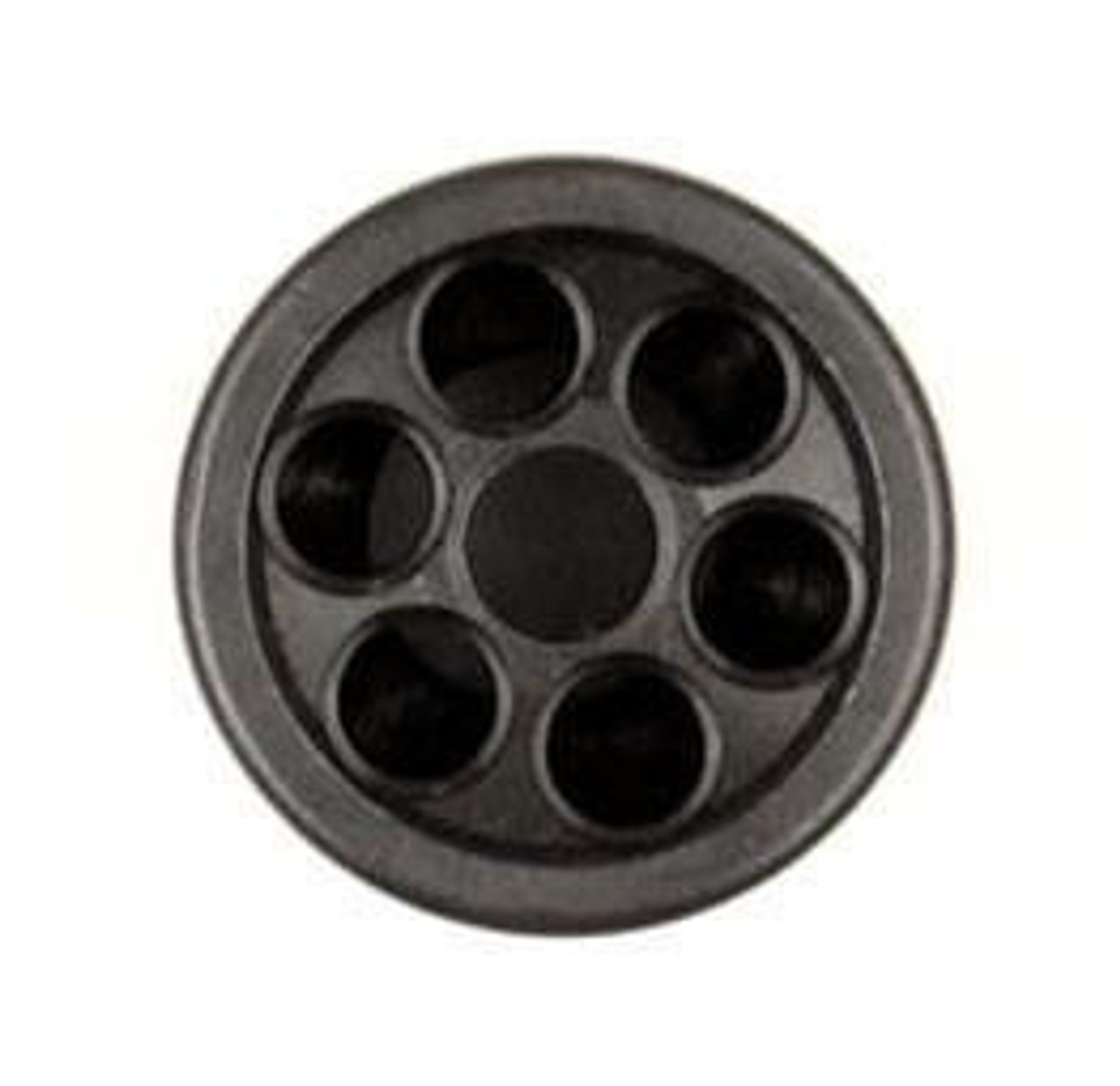

These linear compensators are designed to direct gasses away from the shooter. The six holes are not parallel to the barrel to create a swirl effect for the gasses. The front face is also contoured to help optimize bullet stabilization.

Proudly Canadian-made by our friends at S&J Hardware in Belleville, Ontario.

• Calibre: .223/5.56 or .308/7.62
• Length: 2" (Standard) or 1.5" (Nano)

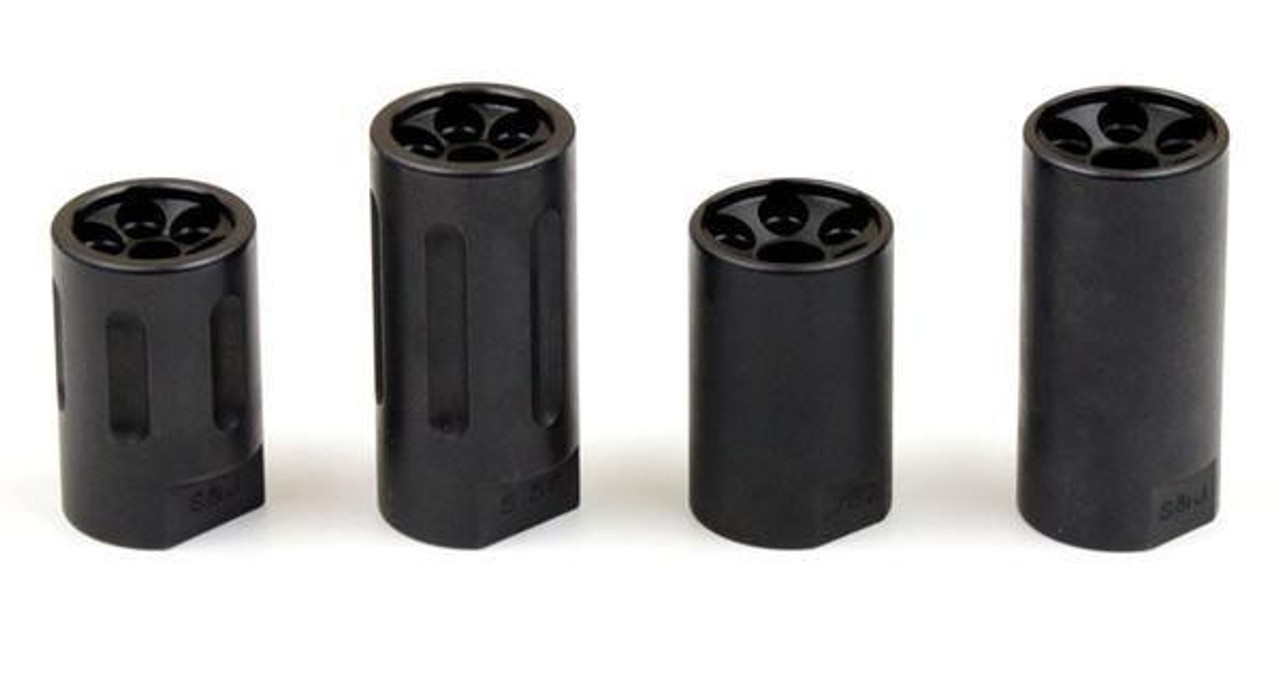

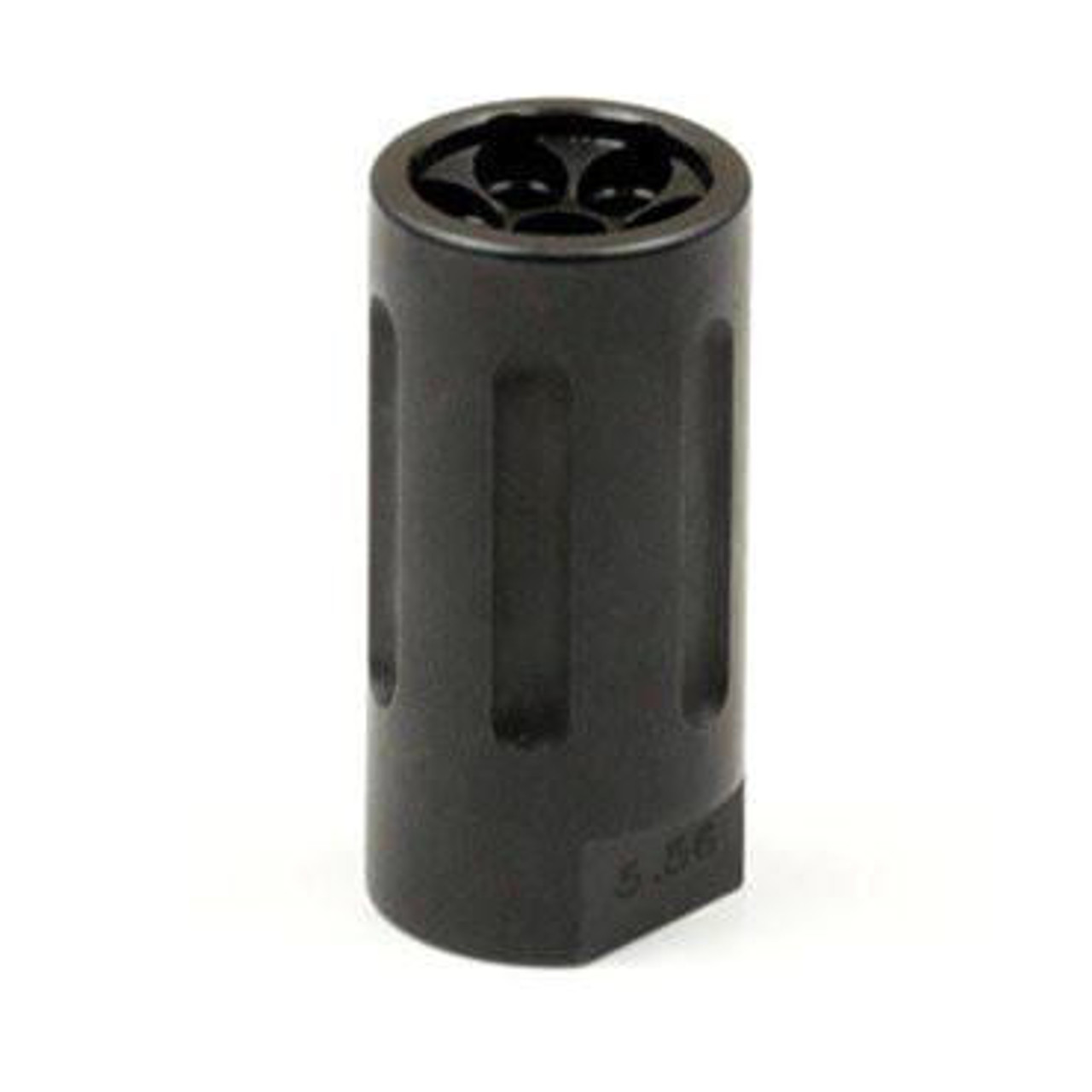

• Style: Smooth or Fluted
• All are just under 1" diameter (0.920")
• The 5.56 is threaded for 1/2-28
• The 9mm/40 is threaded for 1/2-28
• The 308 is threaded for 5/8-24

Weights (including crush washer):

• .223/5.56 – Nano (1.5") – Smooth – 93g
• .223/5.56 – Nano (1.5") – Fluted – 90g
• .223/5.56 – Standard (2") – Smooth – 127g
• .223/5.56 – Standard (2") – Fluted – 120g
• .308/7.62 – Nano (1.5") – Smooth – 80g
• .308/7.62 – Nano (1.5") – Fluted – 77g
• .308/7.62 – Standard (2") – Smooth – 109g
• .308/7.62 – Standard (2") – Fluted – this version is not in production
• 9mm/40 – PCC Standard (1.5") – Smooth – 80g
• 9mm/40 – PCC Standard (1.5") – Fluted – 77g

You get:

• Compensator of the chosen type/size
• Does not include crush washer

Compatible with:

• All Mil-Spec barrel muzzle threads
• Blued and stainless barrels
• .223/5.56 compensators have standard 1/2x28 threads
• .308/7.62 compensators have 5/8x24 threads
• .308 version is not compatible with 9mm, sorry
• The 9mm/40 IS compatible with pistol calibers

Installation Difficulty:

Wrench required for installation:

• .223/5.56mm – 3/4" wrench
• .30/7.62mm – 7/8" wrench
• 9mm/40 – 7/8" wrench

Installation notes:

While installing, remember the tapered side points AWAY from the muzzle device. Follow the handy diagram below:
