Product Description

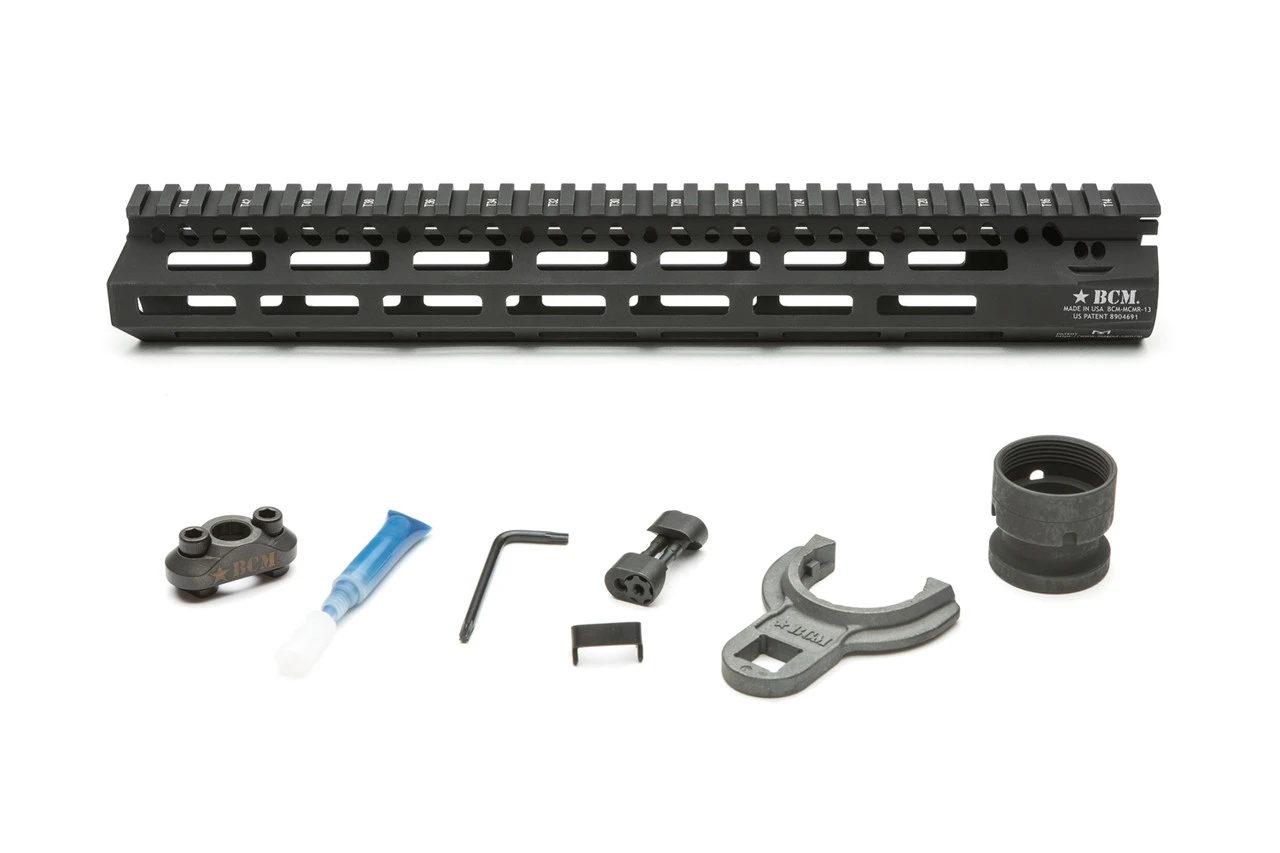

BCM MCMR-13 M-LOK Free Float Handguard
The BCM MCMR Series provides a lightweight, modular free-float handguard using BCM's proprietary barrel nut and lock-up system. The MCMR features an M-LOK compatible mounting system with a mechanical index to the 12:00 rail.
The free-float design helps eliminate loads from the barrel, while the engineered profile provides additional cross-sectional strength.
Features
- M-LOK compatible mounting system
- Free-float design
- Proprietary BCM barrel nut and lock-up system
- Mechanical 12:00 rail index
- 6061-T6 aerospace aluminum
- Steel barrel nut
- Mil-A-8625F Type III Class 2 hardcoat anodized
- Includes BCM M-LOK compatible sling mount
- 1.3" inside diameter
- 1.5" overall width
Specifications
- Actual Length: 13.4" measured to flare
- Handguard Weight: 8.2 oz
- Mounting Hardware Weight: 2.3 oz
- Barrel Nut Compatibility: Mil-Spec diameter barrels up to 1" maximum
Compatibility
Designed for pistol-length, carbine-length, mid-length, or Mil-Spec M16 rifle-length gas systems with a low-profile gas block.
