Product Description

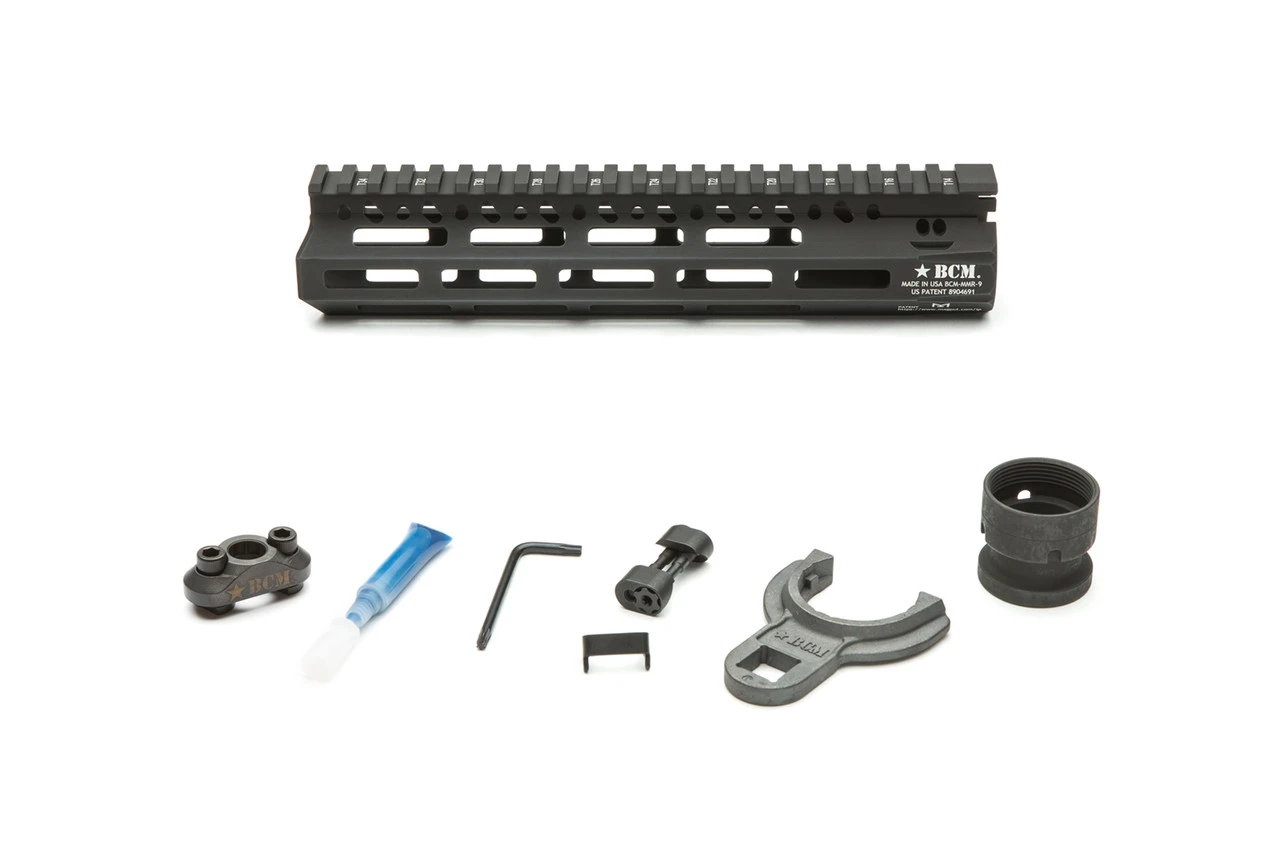

BCM MCMR-9 M-LOK Free Float Handguard

The BCM MCMR Series provides a lightweight, modular free-float handguard using BCM's proprietary barrel nut and lock-up system. The MCMR features an M-LOK compatible mounting system with a mechanical index to the 12:00 rail.

The free-float design helps eliminate loads from the barrel, while the proprietary profile provides additional cross-sectional strength.

Features

• M-LOK compatible mounting system
• Free-float design
• Proprietary BCM barrel nut and lock-up system
• Mechanical 12:00 rail index
• 6061-T6 aerospace aluminum
• Steel barrel nut
• Mil-A-8625F Type III Class 2 hardcoat anodized
• Includes BCM M-LOK compatible sling mount
• 1.3" inside diameter
• 1.5" overall width

Specifications

• Actual Length: 9.4" measured to flare
• Handguard Weight: 5.9 oz
• Mounting Hardware Weight: 2.3 oz
• Barrel Nut Compatibility: Mil-Spec diameter barrels up to 1" maximum

Compatibility

Designed for:

• Mid-length gas systems with a front sight base (FSB)
• Pistol-length gas systems with a low-profile gas block
• Carbine-length gas systems with a low-profile gas block
