Product Description
Magpul MAG1440 MOE RL Carbine Stock , Mil-Spec
A style and feature upgrade to our MOE Carbine Stock
The MOE RL (Reversed Lever) Carbine Stock is a streamlined, A-frame design that replaces OEM stocks and provides clean aesthetics and ease of use. The easily accessible, unobtrusive, reversed adjustment lever is inset into the front of the stock, allowing the stock’s length of pull to be adjusted in overall length from 10.7ʺ to 14ʺ*. The stock also offers a slightly increased cheek-weld area for enhanced shooter comfort. Combining these two aspects of the MOE RL Carbine stock allows shooters to adjust the LOP on the fly if necessary while maintaining a positive check weld; this keeps the shooter locked into the gun and promotes continued situational awareness.
To further increase shooter comfort, the MOE RL Stock is compatible with the MOE SL Enhanced Rubber Butt-Pad so shooters can use the recoil pad that best fits their circumstances. For sling attachment, the RL includes an ambidextrous M-LOK slot in the rear of the stock that functions as a footman’s loop or a space to attach an M-LOK QD Sling Mount.
Made in the USA.
Features

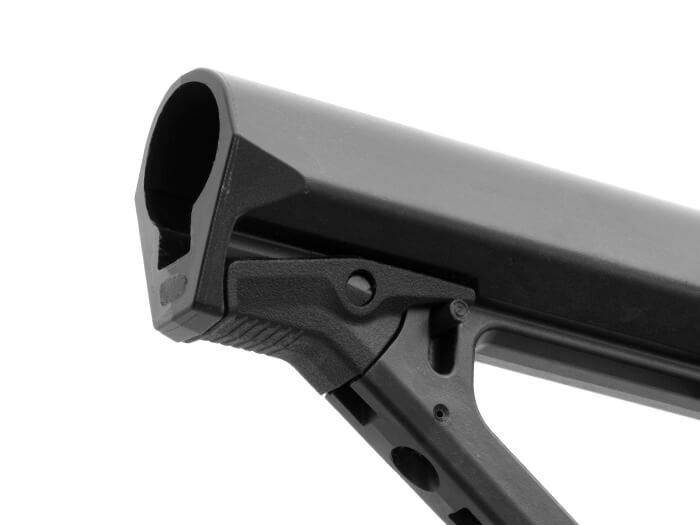

STREAMLINED LEVER
Reversed lever at the front of the stock allows for LOP adjustment without breaking cheek weld
IMPROVED CHEEK WELD
Increased surface area for comfort
ADAPTABLE/CONFIGURABLE TO VARIOUS SHOOTING SCENARIOS

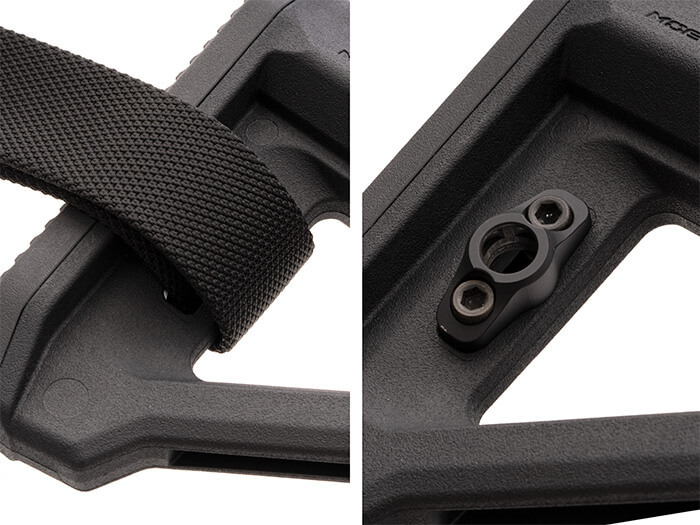

Rear M-LOK slot functions as a footman's loop for direct sling attachment, and can also accept the optional M-LOK QD Sling Mount for push-button swivels
Accepts MOE SL Enhanced Rubber Butt-Pad, 0.70" providing flexibility to optimally fit the shooter and their gear
Technical Specifications
Collection | Collapsible Non-Storage AR Stocks |
---|---|
Platform | AR10, AR15, M4, M16, M110, SR25 |
Compatibility | Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others* |
LOP, M4 Collapsed | ~10.5 in. |
LOP, M4 Extended | ~13.8 in. |
LOP Adjustment Range | 3.3 in. |
Length, max | 7.0 in. |
Height, max | 5.3 in. |
Weight | 8.3 oz. |
Weight, w/ receiver extension | ~12.1 oz. |
Width, max | 1.7 in. |
Other Specs |
*NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): Mil-Spec and Commercial-Spec. The MOE RL Carbine Stock will only fit with the common Mil-Spec tube. Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer. Will not interfere with single-point slings attached to ASAP or ASAP QD receiver end plates. |
