Product Description

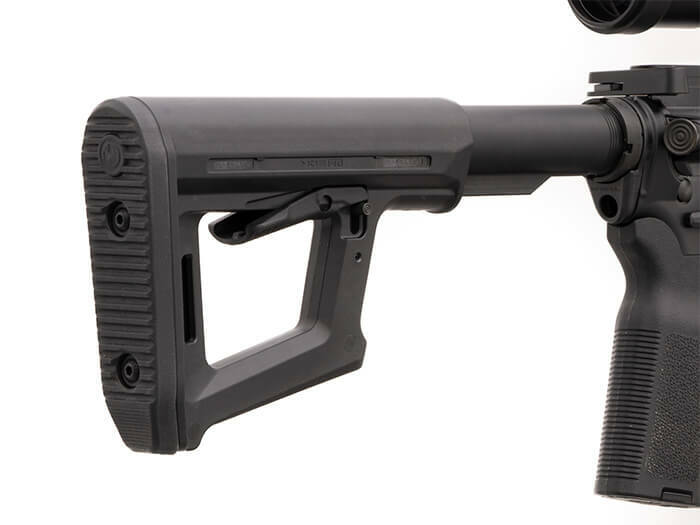

Magpul MAG1435 MOE PR Carbine Stock, Mil-Spec
The MOE PR is a full-size carbine stock that blends the simplicity of the legacy MOE Carbine Stock with design lines reminiscent of the PRS Lite. These similarities naturally incorporate some of the features found on the PRS Lite, including a rest on the front edge of the stock for the support hand that allows shooters to apply rearward pressure to drive the stock securely into the shoulder for precise shot placement, and the bottom of the stock’s frame also serves as a bag rider.
Other features include a sloping cheek weld that combines a slim profile with user comfort, and a non-slip, rubber butt-pad that increases impact protection and allows for easier shoulder transitions and better fit with body armor. With an M-LOK slot molded into the rear of the stock, shooters can attach a sling using the slot as a footman’s loop or by adding the Magpul M-LOK QD Sling Mount to one or both sides of the M-LOK slot.
Made in the USA.
SIMPLE DESIGN, PRECISION INFLUENCES
Support-hand rest on front strap to minimize movement
Bottom support acts as a bag rider for shooting rests
ENHANCED ERGONOMICS
Non-slip rubber butt-pad with rollover on the toe
Sloping cheek weld combines a slim profile with user comfort
Compatible with our Magpul CTR Cheek Risers for use with a fully extended stock and on rifles without rear-facing charging handles
SECURE FIT

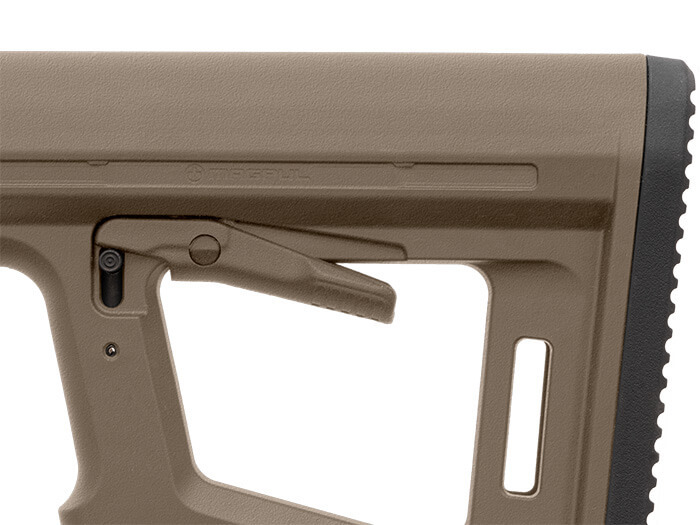

Shielded, ambidextrous release latch prevents snagging and accidental operation
Premium chrome-silicon lock spring provides positive locking and long service life
CUSTOMIZABLE
Compatible with Magpul ASAP, ASAP QD and other receiver-mount sling attachments
Rear M-LOK slot functions as a footman's loop for direct sling attachment, and can also accept the optional M-LOK QD Sling Mount for push-button swivels
Side mounting slots accept optional CTR Cheek Risers for NON AR15/M4 applications
Compatible with MOE SL Enhanced Rubber Butt-Pad, 0.70" for additional LOP
SPECS
| Collection | Collapsible Non-Storage AR Stocks |
|---|---|
| Platform | AR10, AR15, M4, M16, M110, SR25 |
| Compatibility | Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others* |
| LOP, M4 Collapsed | ~11.0 in. |
| LOP, M4 Extended | ~14.3 in. |
| LOP Adjustment Range | 3.3 in. |
| Length, max | 7.4 in. |
| Height, max | 5.3 in. |
| Weight | 11.2 oz. |
| Weight, w/ receiver extension | ~15.2 oz. |
| Width, max | 1.6 in. |
| Other Specs |
*Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer. NOTE: There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): Mil-Spec and Commercial-Spec. The MOE PR Carbine Stock will only fit with the common Mil-Spec tube. |
ASSEMBLY INSTRUCTIONS
